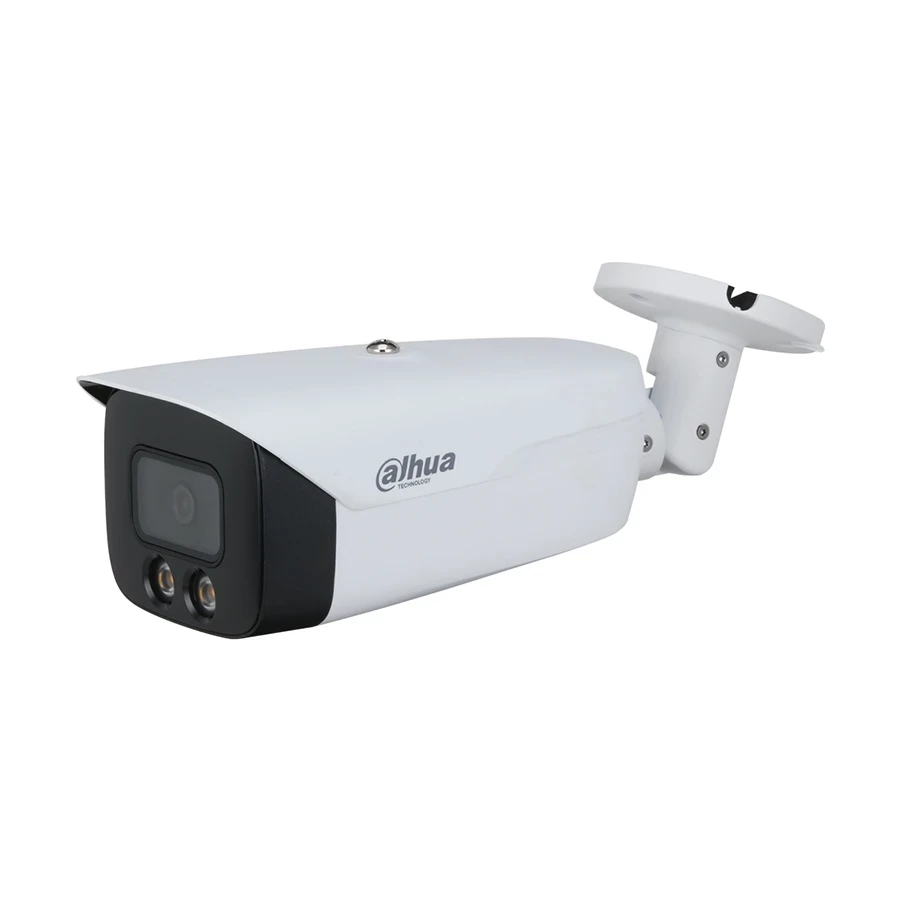

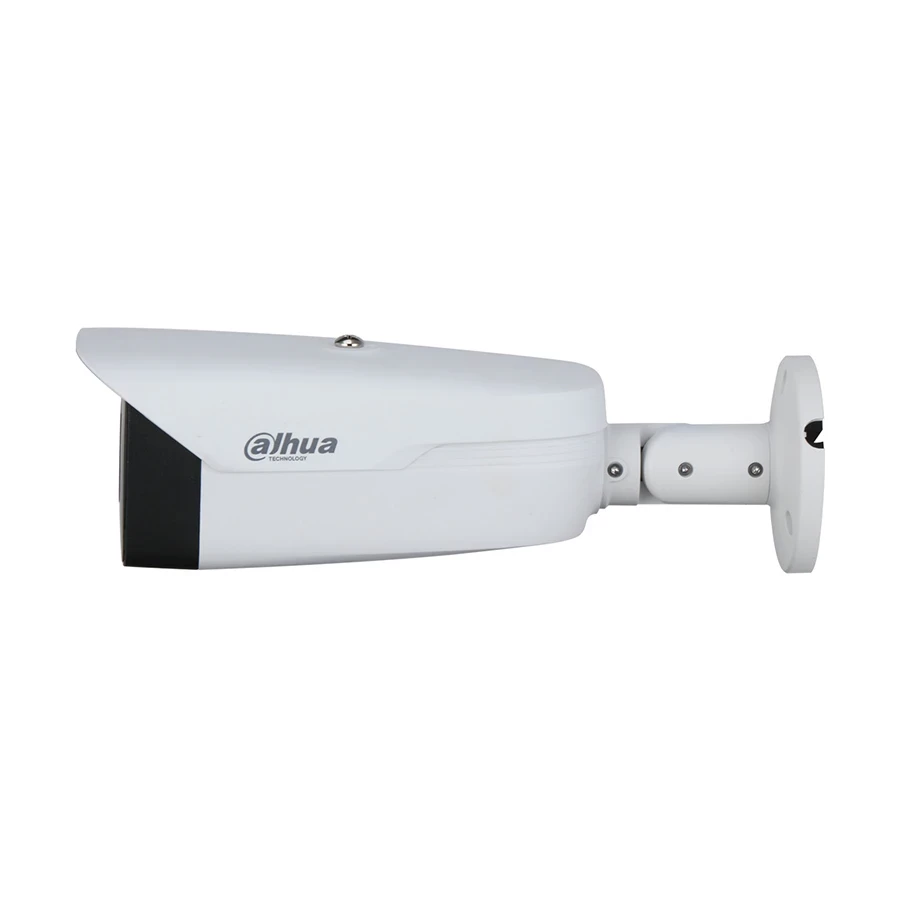

Dahua DH-HAC-HFW1509MHP-A-LED 5MP Full-color HDCVI Bullet Camera
| Price | 5300Tk |
| Status | In Stock |
| SKU | Dahua DH-HAC-HFW1509MHP-A-LED |
· Brand & Model – Dahua DH-HAC-HFW1509MHP-A-LED
· Usage – Outdoor, Form-Factor - Bullet
· Mega Pixels (MP) - 5.0
· Night Vision Mode - Color
· IR Range - 50 Meter, Color - White
Payment
Specification
| General | ||
| Casing | Metal front cover + plastic main body + plastic bracket | |
| Dimensions | 304 mm × 108.4 mm × 90.8 mm (11.97" × 4.27" × 3.57") | |
| Weight | Net Weight: 0.82 kg (1.8 lb) Gross Weight: 1.25kg (2.8 lb) | |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F); 95% (non-condensation) | |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F); 95% (non-condensation) | |
| Power Supply | 12 V ±30% DC | |
| Power Consumption | Max 6.4 W (12 V DC, warm light on) | |
| Camera | ||
| Image Sensor | 5MP CMOS | |
| Effective Pixels | 5MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s | |
| Minimum Illumination | 0.001 Lux/F1.0, 0 Lux warm light on | |
| S/N Ratio | 65 dB | |
| Lens | ||
| Lens Type | Fixed lens | |
| Mount Type | M12 | |
| Focal Length | 3.6 mm; 6 mm | |
| Max Aperture | F1.0 | |
| Angle of View | 3.6 mm: H: 88; V: 46°; D: 104° 6mm: H: 59; V: 32°; D: 67° | |
| Close Focus Distance | 3.6 mm: 2.3 m (7.5 ft) 6mm:4.5m (14.8 ft) | |
| Video | ||
| Resolution | 2880 (H) × 1620 (V) | |
| Frame Rate | TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H | |
| Video Output | CVI/TVI/AHD/CVBS by one BNC port | |
| BLC Mode | BLC/HLC/WDR/HLC-Pro | |
| Gain Control | Auto; manual | |
| Noise Reduction | 3D NR | |
| Interface | ||
| Audio Interface | One channel built-in mic | |
| Video Interface | CVI/TVI/AHD/CVBS by one BNC port | |
| Warranty | ||
| Warranty | 01-year warranty | |
Description
The hfw1509mhp-a-led is the Dahua DH-HAC-HFW1509MHP-A-LED 5MP Full-color HDCVI Bullet Camera, an outdoor surveillance camera featuring 24/7 color imaging, a built-in microphone, and a 50m illumination distance.
Key Features and Specifications
The Dahua DH-HAC-HFW1509MHP-A-LED is a cost-effective and high-performance solution for a range of surveillance needs.
- High Resolution: Equipped with a 5MP CMOS sensor, it captures crisp, sharp video at a maximum resolution of 2880 x 1620 pixels.
- 24/7 Color Imaging: This camera provides color and vivid images around the clock, even in low-light or total darkness, thanks to its warm supplemental LED lights and F1.0 large-aperture lens.
- Audio Capability: It features a built-in, one-channel microphone for integrated audio surveillance.
- Wide Dynamic Range (WDR): With 120 dB true WDR technology, the camera provides clear details in environments with strong brightness contrast or backlight shadows.
- Durable Design: It has an IP67 weatherproof rating, making it suitable for tough outdoor conditions, including dust and water exposure (can withstand soaking in 1m of water for 30 minutes).
- Versatile Compatibility: The camera supports multiple video formats (CVI/TVI/AHD/CVBS) through a single BNC port, ensuring compatibility with various DVR systems.
- Illumination Distance: The warm LED supplemental lights provide an illumination distance of up to 50 meters (164 feet).
- Lens: It comes with a 3.6mm fixed lens by default, offering a horizontal field of view of 88° (a 6mm option is also available).
- Power: It operates on a 12V DC power supply with a maximum power consumption of 6.4W (with the warm light on).
