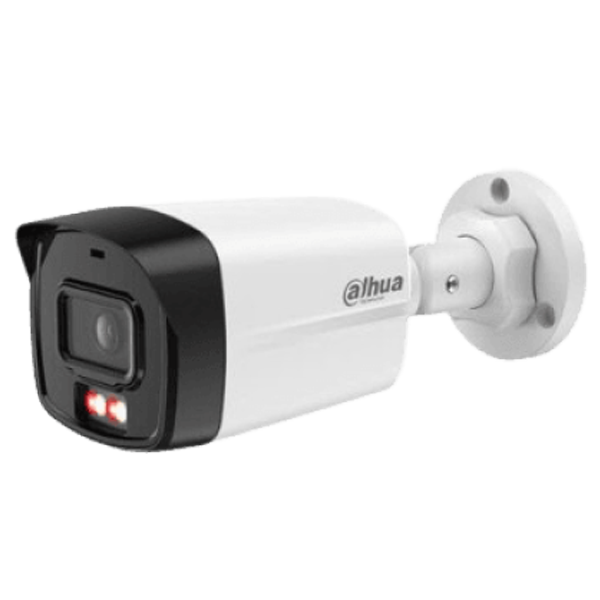

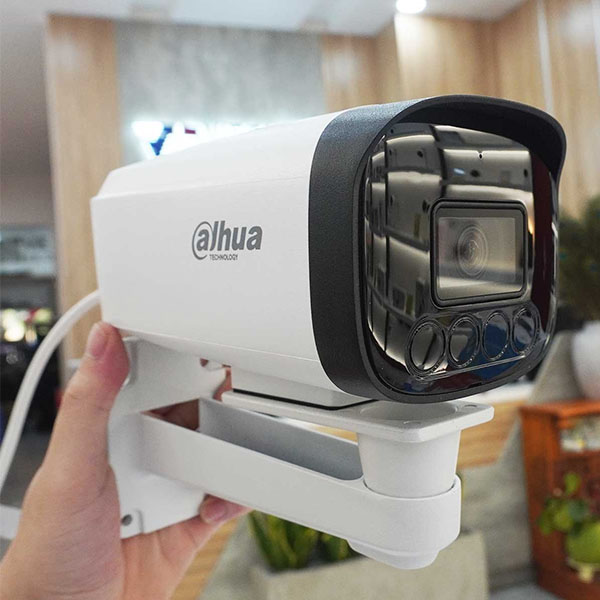

Dahua DH-IPC-HFW1230V-A-I4-B 2MP Night Vision Bullet IP Camera
| Price |
2850Tk
|
| Status | In Stock |
| SKU | Dahua DH-IPC-HFW1230V-A-I4-B 2MP |
· Model: DH-IPC-HFW1230V-A-I4-B
· Built-in IR LED 50 Meter
· 2-MP 1/2.8″ CMOS image
· Built in MIC.
· Outputs max. 2 MP (1920 × 1080) @25/30
· ROI, SMART H.264+/H.265+
· IP67 protection.
Payment
Specification
|
Image Sensor |
1/2.8″ CMOS |
|
Max. Resolution |
1920 (H) × 1080 (V) |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
|
Illuminator Number |
4 (IR LED) |
|
Lens |
|
|
Lens Type |
Fixed-focal |
|
Lens Mount |
M12 |
|
Focal Length |
3.6 mm; 6 mm |
|
Max. Aperture |
F2.0 |
|
Field of View |
3.6 mm: H: 83°; V: 44°; D: 99° 6 mm: H: 53°; V: 30°; D: 60° |
|
Close Focus Distance |
3.6 mm: 0.9 m (2.95 ft) 6 mm: 2.2 m (7.22 ft) |
|
Video |
|
|
Video Compression |
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
|
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Audio |
|
|
Built-in MIC |
Yes |
|
Audio Compression |
G.711a; G.711Mu; G.726; PCM |
|
Network |
|
|
Network Port |
RJ-45 (10/100 Base-T) |
|
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
|
Interoperability |
ONVIF (Profile S); CGI |
|
Power |
|
|
Power Supply |
12 VDC//PoE |
|
Power Consumption |
Basic: 1.5 W (12 VDC); 2.3 W (PoE) Max. (ICR Switch + H.265 + IR intensity): 3.9 W (12 VDC); 4.9 W (PoE) |
|
Structure |
|
|
Casing Material |
Metal + plastic |
|
Product Dimensions |
178.5 mm × 94.0 mm × 88.5 mm (7.03″ × 3.70″ × 3.48″) (L × W × H) |
|
Net Weight |
0.49 kg (1.08 lb) |
|
Gross Weight |
0.85 kg (1.87 lb) |
|
Warranty |
|
|
Warranty |
01 Year |
Description
The Dahua DH-IPC-HFW1230V-A-I4-B is a 2MP Entry-series IR fixed-focal bullet network camera. It is designed for outdoor surveillance, offering extended night vision and built-in audio capabilities in a durable housing.
Core Technical Specifications
- Imaging: 1/2.8" CMOS sensor providing a maximum resolution of 2MP (1920 × 1080) at 25/30 fps.
- Night Vision: Features integrated IR LEDs with an effective illumination distance of up to 50 meters, providing clear black-and-white images in complete darkness.
- Lens Options: Typically available with a 3.6 mm (83° horizontal field of view) or 6 mm (53° horizontal field of view) fixed focal lens.
- Audio: Includes a built-in microphone for one-way audio monitoring and recording.
- Video Optimization: Supports Digital Wide Dynamic Range (DWDR), 3D Noise Reduction (3D NR), Highlight Compensation (HLC), and Backlight Compensation (BLC) to handle various lighting environments.
Smart Features and Efficiency
- AI Detection: Equipped with AI-based motion detection to reduce false alerts from non-target objects and prioritize security events.
- Advanced Compression: Uses H.265 and Smart H.265+ codecs, which significantly reduce storage and bandwidth requirements while maintaining high video quality.
- Rotation Mode: Includes an image flip/rotation feature (0°/90°/180°/270°) to optimize surveillance of narrow areas like hallways.
Installation and Durability
- Weather Protection: Rated IP67, making it resistant to water, dust, and heat for reliable outdoor use.
- Power Supply: Supports both 12V DC and Power over Ethernet (PoE), allowing for easier installation through a single network cable.
- Build: Constructed from a combination of metal and plastic, weighing approximately 0.49 kg.
