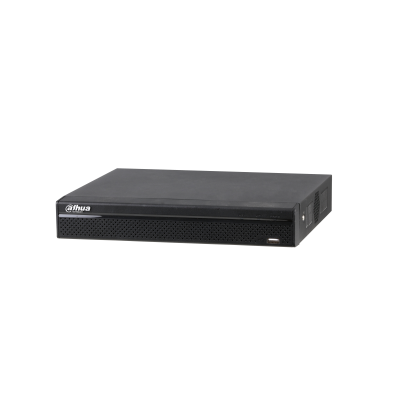

DAHUA XVR1B08-I.8 CHANNEL XVR / UP TO 1080P /1HHD
| Price |
2900Tk
|
| Status | In Stock |
| SKU | 1B08 |
DAHUA XVR1B08-I . DIGITAL VIDEO RECORDER UP TO 1080MP .AUDIO SUPPORT XVR.
Payment
Specification
Dahua XVR1B08-I Specification
| System | ||
| Main Processor | Embedded Processor | |
| Operating System | Embedded linux | |
| Audio and Video | ||
| IP Camera Input | 8 channels, BNC | |
| Two-Way Talk | Reuse audio in/out, RCA | |
| Display | ||

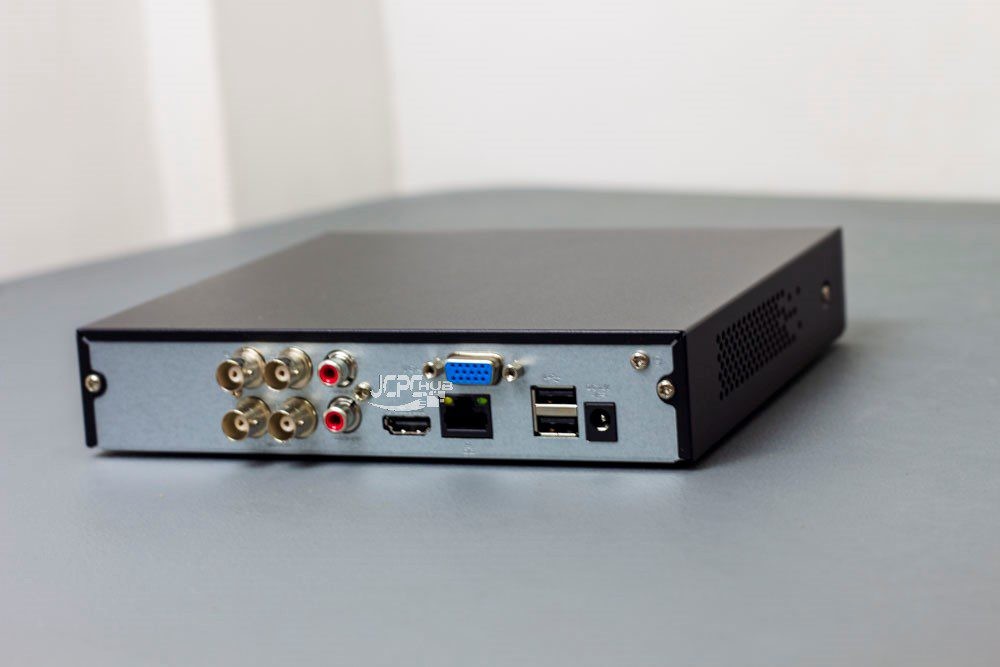

| Interface | 1 HDMI; 1 VGA | |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 | |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording | |
| Recording | ||
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 | |
| Resolution | 1080N; 720p; 960H; D1; CIF | |
| Record Rate | Main Stream: 8-channel: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps) Sub stream: | |
| Bit Rate | 32 kbps–4096 kbps per channel | |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop | |
| Record Interval | 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | |
| Alarm Input | N/A | |
| Relay Output | N/A | |
| Playback And Backup | ||
| Sync Playback | 1/4/9 | |
| Search Mode | Time/Date; Alarm; MD and Exact Search (accurate to second) | |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | |
| Network | ||
| Interface | 1 RJ-45 Port (100 Mbps) | |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Interoperability | ONVIF 16.12, CGI Conformant | |
| Storage | ||
| Internal HDD | 1 SATA port, up to 6 TB capacity | |
| eSATA | N/A | |
| Auxiliary Interface | ||
| USB | 2 USB ports (USB 2.0) | |
| RS232 | N/A | |
| RS485 | N/A | |
| Power | ||
| Power Supply | DC 12 V/1.5 A | |
| Power Consumption | 7 W | |
| Component Environment | ||
| Operational Conditions | –10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH) | |
| Storage Conditions | –20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH) | |
| Construction | ||
| Dimensions | Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81” × 7.99” × 1.63”) | |
| Net Weight | 0.62 kg (1.37 lb) | |
| Gross Weight | 1.13 kg (2.49 lb) | |
