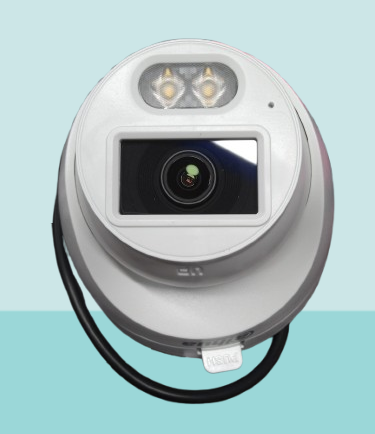

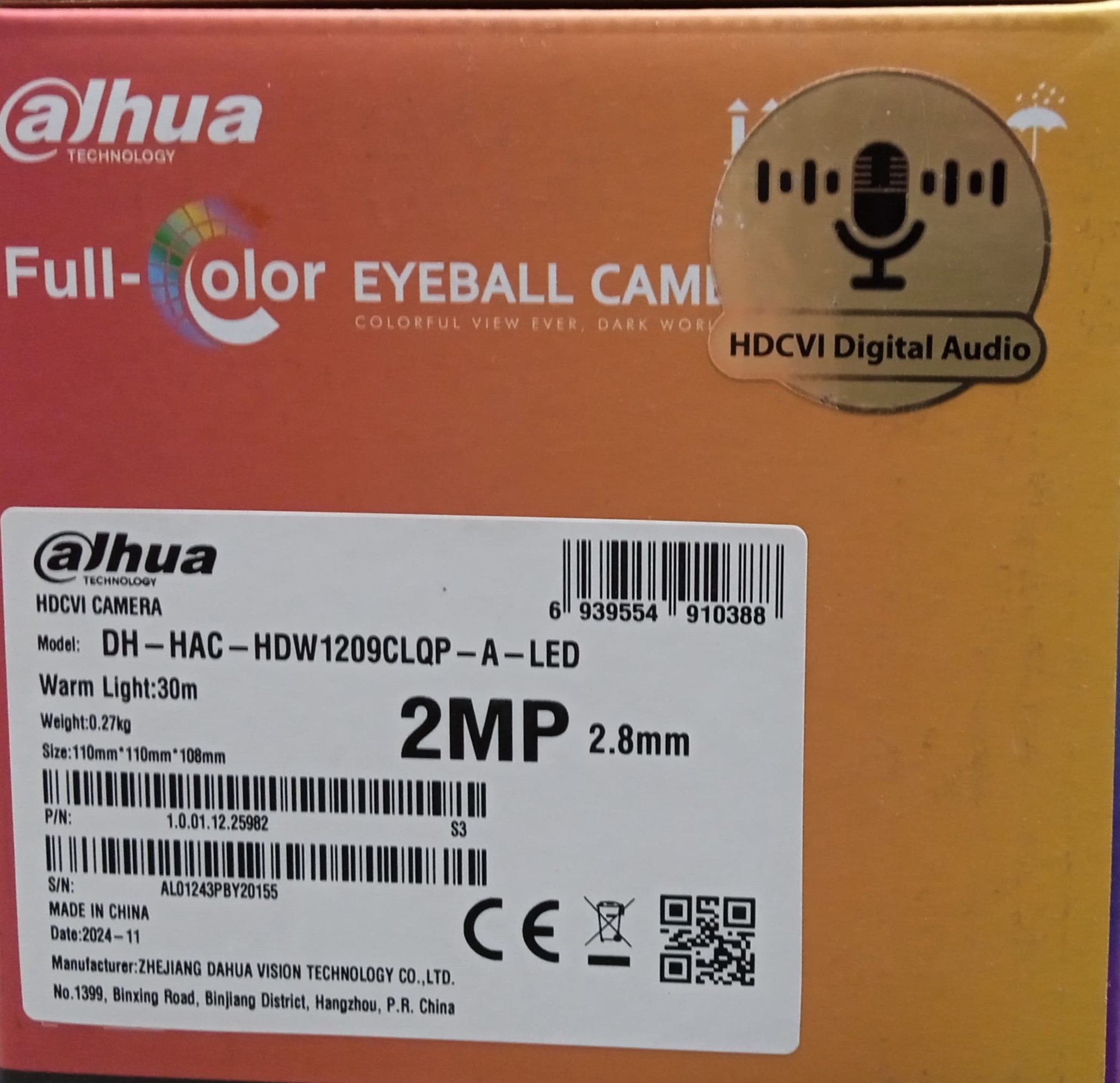

DH-HAC-HDW1209CLQP-A-LED . WAEM LIGHT 30m .

Pixel

2 MP

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance

IR: 20 m (65.62 ft)

Warm light: 30 m (65.62 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light) high power light

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)

3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.1 m

(135.83 ft)

16.5 m

(42.13 ft)

8.3 m

(27.23 ft)

4.1 m

(13.45 ft)

3.6 mm

50.9 m

(166.99 ft)

20.3 m

(66.60 ft)

10.2 m

(33.46 ft)

5.1 m

(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Illuminator

Smart IR&WL; WL Mode; IR Mode

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;

FCC: 47 CFR FCC Part 15, Subpart B

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.6W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Plastic

Product Dimensions

Φ97.1 mm × 93.8 mm (Φ3.82" × 3.69")

Net Weight

0.18 kg (0.40 lb)

Gross Weight

Installation

Wall mount; ceiling mount; vertical pole mount
