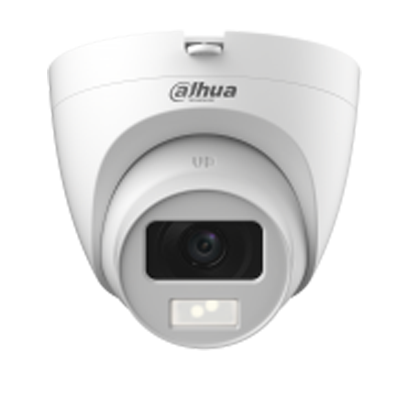

DH-HAC-HDW1209CLQP-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

DH-HAC-HDW1209CLQP-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

Price	1850Tk
Status	In Stock
SKU	DH-HAC-HDW1209CLQP-IL-A

Max. 30 fps@1080p.

3D NR.
Smart Dual Light.
20 m illumination distance.

Super Adapt.

Built-in MIC (-A)

Quick-to-install eyeball saves installation time.

3.6 mm fixed lens (2.8 mm optional)
CVI/CVBS/AHD/TVI switchable
IP67, 12 VDC

Payment

Tk 1850Tk

Cash Discount Price

Online / Cash Payment

Specification
Description
Reviews (0)

Specification

Camera

Pixel

2 MP

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance

IR: 20 m (65.62 ft)

Warm light: 20 m (65.62 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°

3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)

3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.1 m

(135.83 ft)

16.5 m

(42.13 ft)

8.3 m

(27.23 ft)

4.1 m

(13.45 ft)

3.6 mm

50.9 m

(166.99 ft)

20.3 m

(66.60 ft)

10.2 m

(33.46 ft)

5.1 m

(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Illuminator

Smart IR&WL; WL Mode; IR Mode

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;

FCC: 47 CFR FCC Part 15, Subpart B

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.6W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Plastic

Product Dimensions

Φ97.1 mm × 93.8 mm (Φ3.82" × 3.69")

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.29 kg (0.64 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Description

Dahua DH-HAC-HDW1209CLQP-A-LED 2MP Dome CC Camera

The Dahua DH-HAC-HDW1209CLQP-A-LED 2MP Dome CC Camera is a tough and adaptable surveillance equipment designed to provide high-quality security monitoring around the clock. The DH-HAC-HDW1209CLQP-A-LEDcamera's 2MP sensor records sharp and detailed 1080p video at up to 30 frames per second, ensuring that every moment is caught precisely. This camera's highlight feature is its 24/7 color imaging capacity, which, when paired with its strong LED lighting that reaches up to 20 meters, offers bright and accurate color film even in low light or at night. The DH-HAC-HDW1209CLQP-A-LED cc camera's design incorporates a quick-install eyeball mount, which reduces installation time and makes it easy to position the camera for maximum coverage. The Dahua DH-HAC-HDW1209CLQP-A-LED comes with a 3.6 mm fixed lens, which provides a balanced field of vision suited for a variety of surveillance applications, and an alternative 2.8 mm lens is available for those who want a wider angle. The built-in microphone (-A) provides an additional layer of security by allowing audio recording, which captures essential sound details that might be critical in certain scenarios. Because of its switchable video formats, which include CVI, CVBS, AHD, and TVI, this camera is very versatile and easy to incorporate into a variety of current systems. The Dahua DH-HAC-HDW1209CLQP-A-LED is rated IP67 for water and dust protection, making it appropriate for both indoor and outdoor use. This camera operates on a 12 VDC power supply and is not only reliable and durable but also versatile, providing a comprehensive security solution for any setting.
