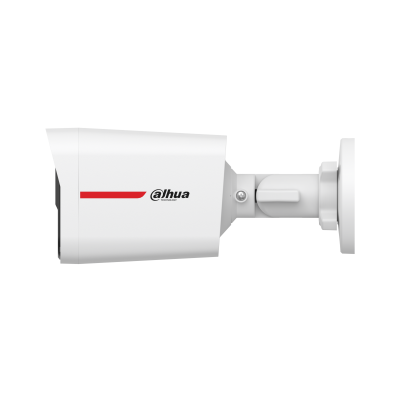

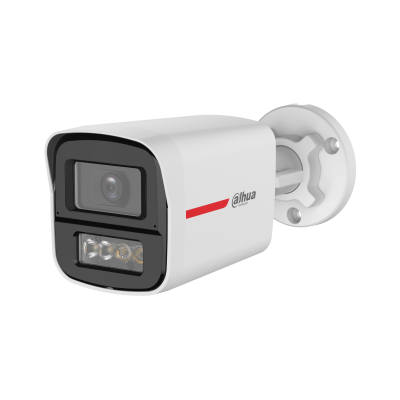

HAC-HFW1249X-A-PRO 2MP WizColor HDCVI Fixed-focal Bullet Camera

HAC-HFW1249X-A-PRO 2MP WizColor HDCVI Fixed-focal Bullet Camera

Price	4200Tk
Status	In Stock
SKU	HAC-HFW1249X-A-PRO

24/7 color imaging, Max. 30 fps@1080p,  AI-ISP.
Distortion Correction,  Smart Light+.
50 m illumination distance, Super Adapt, 130 dB true WDR, 3D NR
Built-in Dual Mic,  Quick-to-install bracket saves installation time.
3.6 mm fixed lens (2.8 mm optional), CVI/CVBS/AHD/TVI switchable, IP67, 12 VDC

Payment

Tk 4200Tk

Cash Discount Price

Online / Cash Payment

Specification
Description
Reviews (0)

Specification

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.0001 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance

50 m (164.04 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 101°; V: 53.4°; D: 119.5°
3.6 mm: H: 81.5°; V: 44.3°; D: 95.7°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	47.1 m ( 154.53 ft)	18.9 m ( 62.01 ft)	9.4 m ( 30.84 ft)	4.7 m ( 15.42 ft)
3.6 mm	55.7 m ( 182.74 ft)	22.3 m ( 73.16 ft)	11.1 m ( 36.42 ft)	5.6 m ( 18.37 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR

WDR

130 dB

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

Yes (It needs to be controlled through the XVR)

Illumination Mode

Smart Light

Mirror

Yes (It needs to be controlled through the XVR)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic

Yes, built-in dual Mic

Camera Audio

CVI

Pick-up Distance

12 m (39.37 ft)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply

12 VDC (±30%)

Power Consumption

Max 5.6 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal front cover + plastic rear barrel + metal bracket

Product Dimensions

186.5 mm × 75 mm × 82.2 mm (7.34" × 2.95" × 3.24") (L × W × H)

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.49 kg (1.08 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Description

DAHUA DH-HAC-HFW1249XP-A-PRO 2 MP WIZ COLOR HDCVI BULLET CAMERA

The DAHUA DH-HAC-HFW1249XP-A-PRO 2 MP Wiz Color HDCVI Bullet Camera is a powerful and modern surveillance solution designed for users who demand clear, colorful, and reliable security footage day and night. With Dahua’s advanced Wiz color technology, this camera delivers true full-color video even in low-light conditions, making it an ideal choice for homes, offices, shops, factories, and outdoor security systems

We proudly offer this advanced Dahua CCTV camera to ensure top-level security and peace of mind for our customers across Bangladesh. The camera comes with a 2 Megapixel (1920 × 1080) image sensor, delivering sharp and detailed Full HD video. This resolution ensures that faces, movements, and objects are captured clearly, which is crucial for monitoring and evidence. Collections her camera is equipped with Smart Light+ technology, offering warm LED illumination up to 50 meters. The smart lighting automatically adjusts brightness based on distance and environment, reducing overexposure and ensuring balanced night footage the built-in dual microphone allows synchronized audio and video recording. This feature adds an extra layer of security by capturing sound along with visuals, making the surveillance system more informative and effective the HDCVI technology supports CVI, TVI, AHD, and CVBS outputs, ensuring wide compatibility with different DVR systems. This makes the camera easy to integrate into both new and existing surveillance setups The camera is available with 2.8mm or 3.6mm fixed lens options, allowing users to choose between wider coverage or longer viewing distance based on their security requirements Dahua is one of the world’s leading CCTV and surveillance brands, known for innovation, durability, and advanced security technologies. The DH-HAC-HFW1249XP-A-PRO model reflects Dahua’s commitment to professional-grade surveillance solutions.
