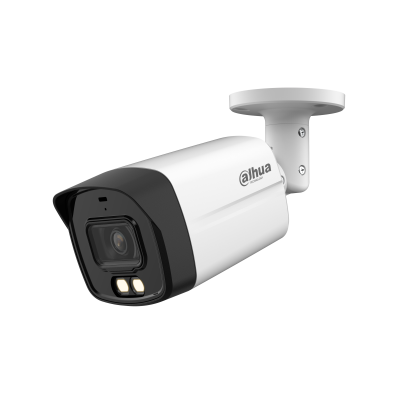

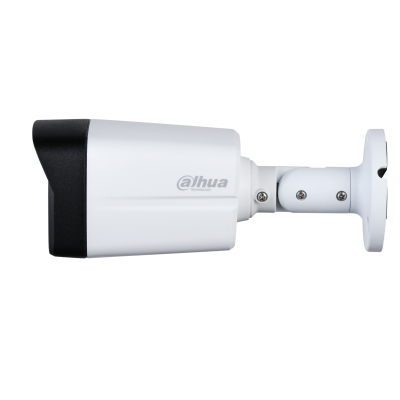

HAC-HFW1500TLM-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera

HAC-HFW1500TLM-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera

Price	3500Tk ~~3500Tk~~
Status	In Stock
SKU	HAC-HFW1500TLM-IL-A 5MP Smart Dual Light

· Max 25 fps@5MP (16:9 video output). Smart Dual Light.

· 40 m illumination distance, Super Adapt.

· Built-in MIC, 3.6 mm fixed lens (2.8 mm optional).

· CVI/CVBS/AHD/TVI switchable.

· IP67, 12 VDC.

Payment

3500Tk 3900Tk

Cash Discount Price

Online / Cash Payment

Specification
Description
Reviews (0)

Specification

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Warm light);2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56 m

(183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

3.6 mm

76 m

(249.34 ft)

30.4 m

(99.74 ft)

15.2 m

(49.87 ft)

7.6 m

(24.93 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

2D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.5 W (12 VDC, WLED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal front cover + plastic rear barrel + metal bracket

Product Dimensions

198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3")

Net Weight

0.3 kg (0.66 lb)

Gross Weight

0.42 kg (0.93 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Description

The HFW1500TLMP-IL-A is a high-performance, cost-effective Dahua 5MP Smart Dual Light HDCVI fixed-focal bullet surveillance camera designed for a wide array of security applications. This camera delivers sharp, high-definition video day and night, making it ideal for residential areas, SMB solutions, and general outdoor use.

Detailed Features

The Dahua DH-HAC-HFW1500TLMP-IL-A model is packed with features to ensure reliable and high-quality surveillance:

Smart Dual Light Technology: The camera intelligently employs both invisible infrared (IR) and warm white LEDs. In low-light conditions, it typically uses IR for black-and-white images (with an illumination distance up to 40 meters), but if a target is detected (when connected to a compatible AI XVR with perimeter protection/SMD Plus functions), the white light automatically activates to capture vivid, full-color images, which can aid in identification.
High-Resolution Video: Featuring a 1/2.7” 5MP CMOS image sensor, the camera captures video at a maximum resolution of 2880 x 1620 pixels, ensuring clear and detailed footage. It supports a max frame rate of 25 frames per second at 5MP (16:9 video output).
Built-in Microphone: For enhanced situational awareness, the camera includes a built-in high-fidelity microphone that captures and transmits audio signals over the same coaxial cable as the video, reducing noise for clear audio quality.
Versatile Compatibility: This model supports multiple video signal formats, including CVI, TVI, AHD, and CVBS, and can be switched between them via a single BNC port, allowing for easy integration with various existing DVR systems.
Wide Dynamic Range (WDR): With 120 dB true WDR and 3D noise reduction (3D NR), the camera can produce optimal images in high-contrast lighting environments, such as scenes with strong backlighting or glare, without overexposing bright areas or underexposing dark areas.
Durable and Weatherproof Design: The camera is designed for reliable outdoor operation with an IP67 weatherproof rating, protecting it from dust and water immersion. It can function in extreme temperatures ranging from -40°C to +60°C (-40°F to +140°F). The casing is a robust combination of a metal front cover, plastic rear barrel, and metal bracket.
