HAC-T1A21-U-IL-A 2MP Smart Dual Light HDCVI Fixed focal

HAC-T1A21-U-IL-A 2MP Smart Dual Light HDCVI Fixed focal

Price	1450Tk
Status	In Stock
SKU	DH-HAC-T1A21P-U-IL-A

Max. 30 fps@1080p.

Smart Dual Light.

25 m illumination distance.

Built-in MIC.

Quick-to-install eyeball saves installation time.

2.8 mm fixed lens (3.6 mm optional).

CVI/CVBS/AHD/TVI switchable.

Payment

Tk 1450Tk

Cash Discount Price

Online / Cash Payment

Specification
Description
Reviews (0)

Specification

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.02 lux@F2.0 (Color, 30 IRE);
0.002 lux@F2.0 (B/W, 30 IRE);
0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance

IR: 25 m (82.02 ft);
Warm light: 20 m (65.62 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Warm light);2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H: 80°; V: 43°; D: 94°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

44.7 m
(146.65 ft)

17.9 m
(58.73 ft)

8.9 m
(29.20 ft)

4.5 m
(14.76 ft)

3.6 mm

55.0 m
(180.45 ft)

22.0 m
(72.18 ft)

11.0 m
(36.09 ft)

5.5 m
(18.04 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto;Area white balance

Gain Control

Auto;Manual

Noise Reduction

2D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.1 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

95% (RH), non-condensing

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

Φ85.0 mm × 77.1 mm (Φ3.35" × 3.04")

Net Weight

0.11 kg (0.24 lb)

Gross Weight

0.12 kg (0.26 lb)

Installation

Wall mount; ceiling mount

Description

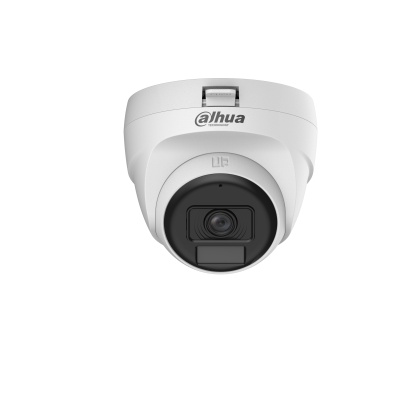

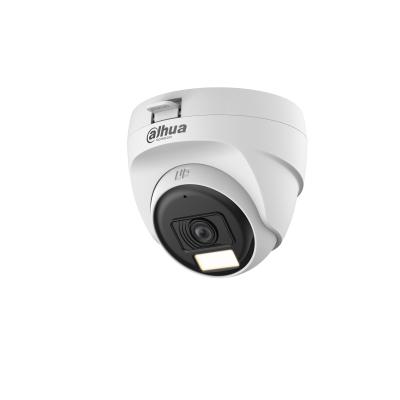

The Dahua HAC-T1A21-U-IL-A is a 2MP Smart Dual Light HDCVI fixed-focal eyeball camera designed for versatile and reliable surveillance in various conditions. It captures high-definition video at up to 30 frames per second and features an innovative lighting system to ensure clear images both day and night.

Key Product Details

Image Sensor: 2 MP CMOS image sensor.
Max. Resolution: 1920 (H) × 1080 (V).
Lens: 2.8 mm fixed focal length (3.6 mm optional).
Field of View (2.8 mm): H: 100°, V: 54°, D: 117°.
Video Frame Rate: Up to 30 fps @ 1080p.
Video Output: A single BNC port provides switchable video output choices (CVI/TVI/AHD/CVBS) for broad compatibility with different DVR systems.
Audio: Features a built-in microphone for single-channel audio input.

Illumination & Environmental

Smart Dual Light: The camera uses both infrared (IR) and warm LED light. In low-light conditions, it can automatically switch to warm light to capture full-color images, reducing light pollution when a target is not present.
Illumination Distance:
IR Distance: Up to 25 m (82.02 ft).
Warm Light Distance: Up to 20 m (65.62 ft).
Minimum Illumination: 0.02 lux@F2.0 (color) and 0 lux when illuminator is on.
Durability: IP67-rated ingress protection makes it suitable for outdoor use, resistant to dust and water.
Operating Conditions: Functions reliably in a wide temperature range from –40 °C to +60 °C (–40 °F to +140 °F).

Physical Characteristics

Casing Material: Plastic.
Dimensions: Φ85.0 mm × 77.1 mm (Φ3.35" × 3.04").
Net Weight: 0.11 kg (0.24 lb).
Installation: Designed for quick and easy installation with support for wall and ceiling mounting.

This camera is an affordable and versatile solution, ideal for both residential and commercial surveillance applications due to its high-quality imaging, durable design, and smart features.
