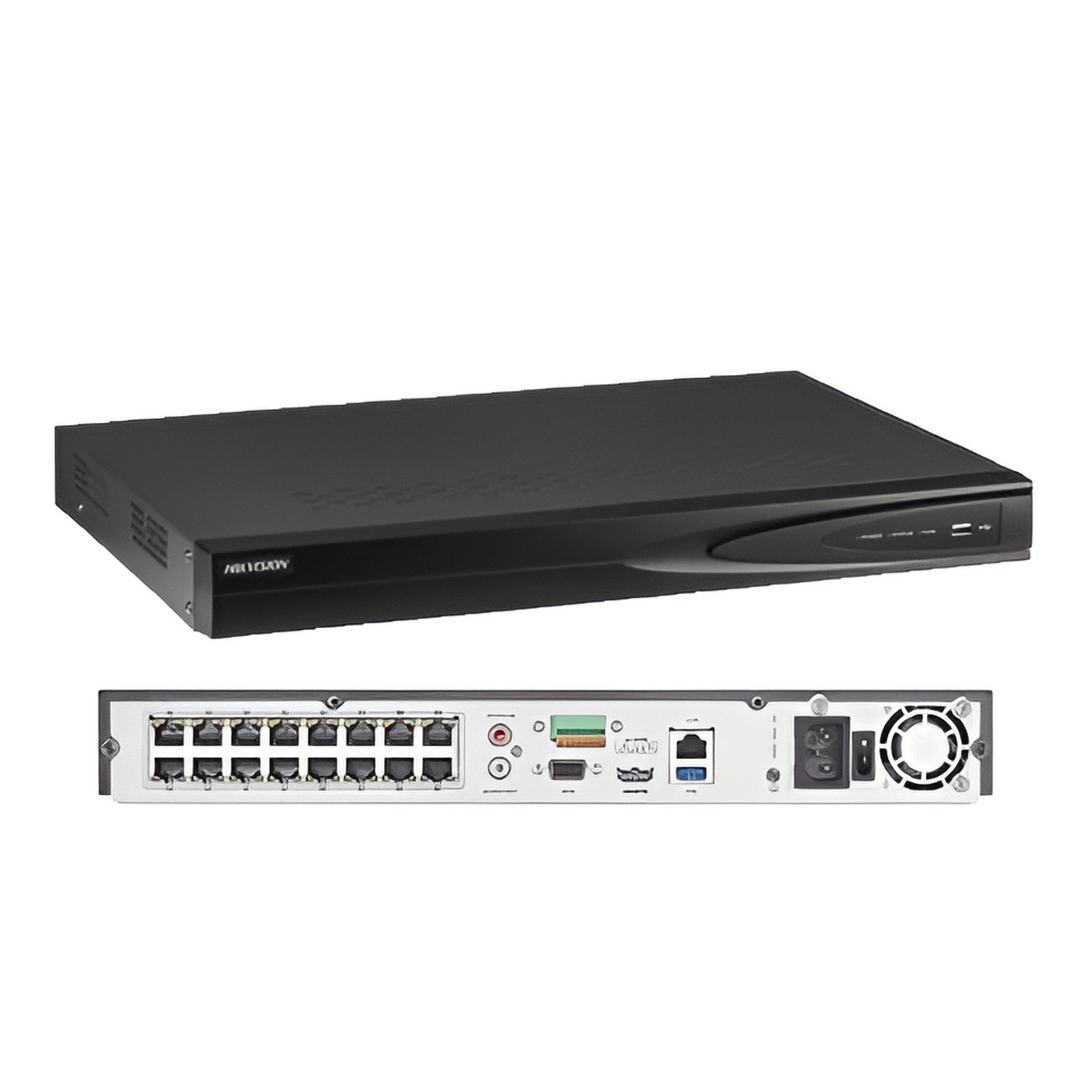

Hikvision DS-7616NI-Q2 16-CH 4k NVR
| Price |
10800Tk
|
| Status | In Stock |
| SKU | Hikvision DS-7616NI-Q2 16-CH 4k NVR |

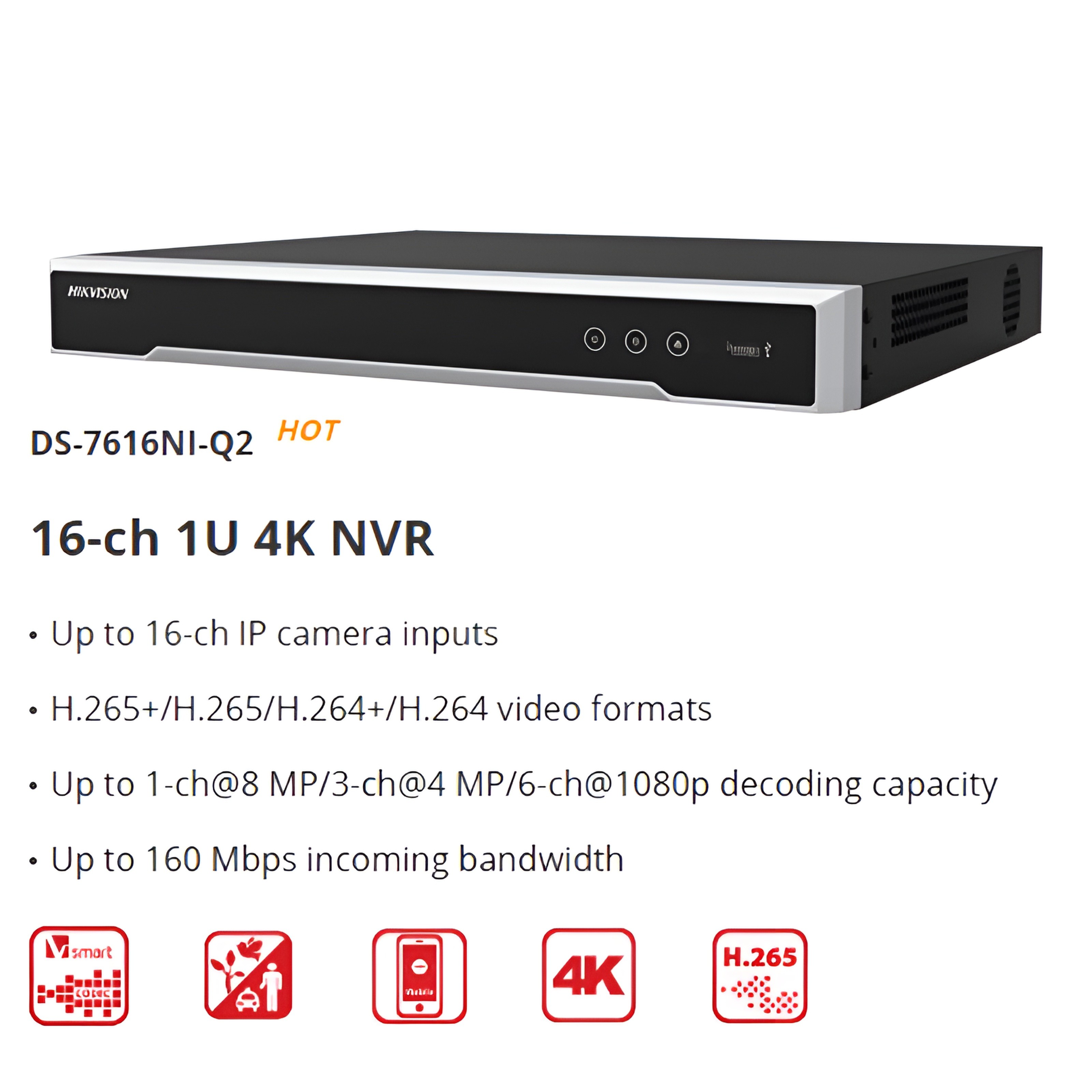

· DS-7616NI-Q2 4K NVR
· Up to 16-ch IP camera inputs
· H.265+/H.265/H.264+/H.264
· Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p
· Up to 160 Mbps incoming bandwidth
Payment
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis4-ch
- Video and Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Decoding Capability
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Synchronous playback16-ch
- Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 8 TB capacity for each disk
- USB Interface2 × USB 2.0
- General
- Power Supply12 VDC, 3.33 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Chassis1U chassis
- Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
- ≤ 1.8 kg (without HDD, 4.0 lb.)
Description
The Hikvision DS-7616NI-Q2 is a professional-grade 16-channel Network Video Recorder (NVR) designed for high-definition 4K surveillance. It is a core component for medium-to-large security systems, offering advanced video processing and substantial storage capacity.
Key Technical Specifications (2026)
- IP Video Input: Supports up to 16 channels of IP cameras with resolutions up to 8 MP (4K).
- Bandwidth: Features a high incoming bandwidth of 160 Mbps and 80 Mbps outgoing bandwidth to ensure stable performance across all channels.
- Video Compression: Supports H.265+, H.265, H.264+, and H.264 formats. H.265+ can reduce storage and bandwidth requirements by up to 75% compared to H.264.
- Decoding Capacity: Capable of decoding 1-ch @ 8 MP or 5-ch @ 1080p simultaneously for real-time monitoring.
- Video Output: Dual simultaneous outputs via HDMI (up to 4K resolution) and VGA (up to 1080p).
- Storage: Equipped with 2 SATA interfaces, each supporting up to 8 TB for a total of 16 TB internal storage.
Smart and Security Features
- Motion Detection 2.0: Supports human and vehicle classification on up to 4 channels to minimize false alarms.
- VCA (Video Content Analytics): Compatible with smart camera functions including line crossing, intrusion detection, face detection, and people counting.
- Smart Search/Playback: Enables efficient footage retrieval by allowing users to search specifically for events or designated areas.
- Remote Management: Fully integrated with the Hik-Connect app and iVMS-4200 software for mobile and PC-based remote viewing.
