IPC-HFW1230S1-A-S5 2 MP Entry IR Fixed-focal Bullet Network Camera

IPC-HFW1230S1-A-S5 2 MP Entry IR Fixed-focal Bullet Network Camera

Price	3200Tk ~~3200Tk~~
Status	In Stock
SKU	IPC-HFW1230S1-A-S5 2 MP

· 2-MP 1/2.8" CMOS image sensor

· 2 MP (1920 × 1080)@25/30 fps.

· Built-in IR LED, and the max.

· illumination distance is 30 m.

· ROI, SMART H.264+/H.265+

· Rotation mode, DWDR, 3D NR, HLC, BLC

· Built-in MIC.

· IP67 protection.

Payment

3200Tk 3500Tk

Cash Discount Price

Online / Cash Payment

Specification
Description
Reviews (0)

Specification

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1(IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F2.0

3.6 mm: F2.0

Field of View

2.8 mm: Horizontal: H: 102°; V: 54°; D: 120°

3.6 mm: Horizontal: H: 88°; V: 47°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)

3.6 mm: 0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.64 ft)

15.4 m (50.52 ft)

7.7 m (25.26 ft)

3.9 m

(12.80 ft)

3.6 mm

49.7 m (163.06 ft)

19.9 m (65.29 ft)

9.9 m (32.48 ft)

5.0 m

(16.40 ft)

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080@1–25/30 fps
Sub stream:
704 × 576@1–25 fps
704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Configuration encryption;Trusted execution; Digest; Security logs; Trusted upgrade; WSSE;Trusted boot; Account lockout; Generation and importing of X.509 certification; Video encryption

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Interoperability

ONVIF (Profile S); CGI; P2P; Genetec

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS;Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 1.2 W (12 VDC); 2 W (PoE)
Max. (ICR + H.265 + IR intensity): 3.2 W (12 VDC); 4.1 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

162.6 mm × 70 mm× 70 mm (6.4" × 2.8" × 2.8") (L × W × H)

Net Weight

0.22 kg (0.5 lb)

Gross Weight

0.34 kg (0.7 lb)

Description

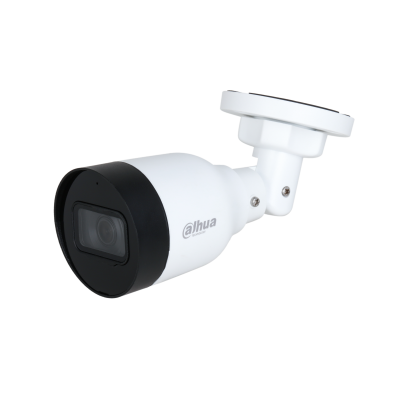

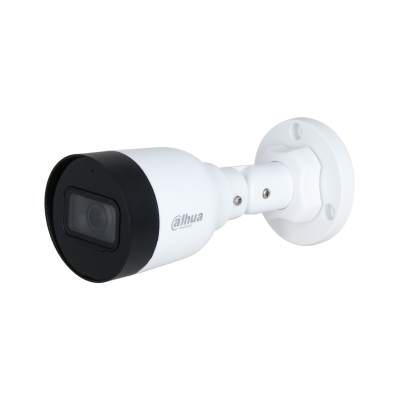

The Dahua DH-IPC-HFW1230S1-A-S5 is a 2-megapixel (1080p) bullet IP camera designed for entry-level outdoor and indoor surveillance. Part of Dahua's Entry series, it is favored for its cost-effectiveness and ease of installation, particularly in small to medium-sized scenes like residences and retail stores.

Key Specifications

Resolution: 2 Megapixels (1920 x 1080) at up to 25/30 fps.
Lens: Typically comes with a 3.6mm or 2.8mm fixed-focal lens.
Night Vision: Equipped with a built-in IR LED providing a night vision range of up to 30 meters (98 ft).
Audio: Features a built-in microphone for audio recording and abnormality detection.
Video Compression: Supports H.265, H.264, and Smart Codecs (H.265+/H.264+) to reduce bandwidth and storage needs.
Durability: Rated IP67 weatherproof, meaning it is dust-proof and can withstand immersion in water.

Features & Performance

Image Quality: Uses a 1/2.8" CMOS sensor with low-luminance technology for high-definition images.
Advanced Processing: Includes Digital Wide Dynamic Range (DWDR), 3D Noise Reduction (3D NR), and Backlight Compensation (BLC) to handle various lighting conditions.
Smart Functions: Supports motion detection, video tampering, and security exceptions.
Power Supply: Can be powered via 12V DC or PoE (Power over Ethernet), which simplifies wiring by using the same cable for power and data.

Physical & Network

Connectivity: Standard RJ-45 (10/100 Base-T) port; does not support Wi-Fi.
Build: Constructed from a combination of metal and plastic.
Interoperability: Compatible with ONVIF (Profile S), CGI, and P2P, allowing it to work with various network video recorders (NVRs)
