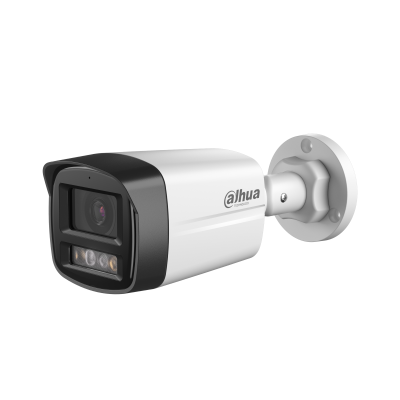

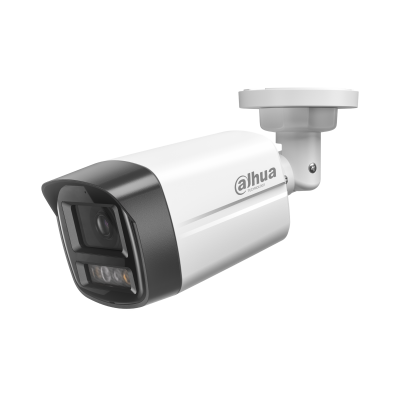

IPC-HFW1439TL1-A-IL 4MP Entry Smart Dual Light Fixed-focal Bullet Network Camera
| Price |
4000Tk
|
| Status | In Stock |
| SKU | IPC-HFW1439TL1-A-IL 4MP |
· Model: DH-IPC-HFW1439TL1-A-IL
· Image Sensor: 1/2.9" Progressive Scan CMOS
· Resolution: Max. 4MP (2560 × 1440) at 25/30 fps
· Lens: 2.8 mm;3.6 mm, Aperture: F1.6, IR Distance: 30 meters
· Features: PoE, IP67, DWDR, 3D NR, Smart Detection
Payment
Specification
|
Camera |
|||||
|
Image Sensor |
1/2.9" CMOS |
||||
|
Max. Resolution |
2560 (H) × 1440 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
|
Min. Illumination |
0.006
lux@F1.6 (Color,30 IRE) |
||||
|
S/N Ratio |
56 dB |
||||
|
Illumination Distance |
Up to
30 m (98.43 ft) (IR LED) |
||||
|
Illuminator On/Off Control |
Auto;Manual |
||||
|
Illuminator Number |
2 (IR LED); 2 (Warm light) |
||||
|
Angle Adjustment |
Pan:
0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.8 mm;3.6 mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field of View |
2.8 mm:
H: 94°; V: 52°; D: 111° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
2.8 mm:
1.1 m (3.61 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
64.0 m (209.97 ft) |
25.6 m (83.98 ft) |
12.8 m (41.99 ft) |
6.4 m (21.00 ft) |
|
|
3.6 mm |
85.4 m (280.18 ft) |
34.2 m (112.20 ft) |
17.1 m (56.10 ft) |
8.5 m (27.89 ft) |
|
|
Intelligence |
|||||
|
Human and Vehicle Detection |
Support the classification and accurate detection of human and vehicle |
||||
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
||||
|
Smart Codec |
Smart H.265+; Smart H.264+ |
||||
|
Video Frame Rate |
Main
stream: 2560 × 1440@(1–25/30 fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264:
32 kbps–4096 kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
120 dB |
||||
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
|
Gain Control |
Auto;Manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest (RoI) |
Yes (4 areas) |
||||
|
Smart Illumination |
Yes |
||||
|
Image Rotation |
0°/180° |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Built-in MIC |
Yes, built-in Mic |
||||
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
||||
|
Alarm |
|||||
|
Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human and vehicle); security exception |
||||
|
Network |
|||||
|
Network Port |
RJ-45 (10/100 Base-T) |
||||
|
SDK and API |
Yes |
||||
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
||||
|
Interoperability |
ONVIF (Profile S; Profile T); CGI |
||||
|
User/Host |
6 (Total bandwidth: 24 M) |
||||
|
Storage |
FTP |
||||
|
Browser |
IE; Chrome; Firefox |
||||
|
Management Software |
Smart PSS Lite; DSS; DMSS |
||||
|
Mobile Client |
iOS;Android |
||||
|
Cyber Security |
Configuration encryption;Trusted execution;Digest;Security logs;HTTPS;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD:
EN62368-1 |
||||
|
Power |
|||||
|
Power Supply |
12 VDC/PoE (802.3af) |
||||
|
Power Consumption |
Basic:
2 W (12 VDC); 2.9 W (PoE) |
||||
|
Environment |
|||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
|
Operating Humidity |
≤95% |
||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
|
Storage Humidity |
≤95% |
||||
|
Protection |
IP67 |
||||
|
Structure |
|||||
|
Casing Material |
Metal+plastic |
||||
|
Product Dimensions |
197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H) |
||||
|
Net Weight |
0.31 kg (0.68 lb) |
||||
|
Gross Weight |
0.45 kg (0.99 lb) |
||||
Description
The HFW1439TL1-A-IL is the Dahua DH-IPC-HFW1439TL1-A-IL 4MP Smart Dual Light Bullet Network Camera, an outdoor IP security camera offering high-resolution video and intelligent human detection.
Key Specifications
|
Attribute |
Details |
|
Manufacturer |
Dahua Technology |
|
Resolution |
Max. 4MP (2560 × 1440) at 25/30 fps |
|
Image Sensor |
1/2.9" Progressive Scan CMOS |
|
Lens Type |
Fixed-focal, available in 2.8 mm and 3.6 mm options |
|
Field of View (3.6mm lens) |
H: 78°, V: 41°, D: 94° |
|
Illumination |
Smart Dual Light (IR LED and warm light), up to 30m (98.43 ft) range for both |
|
Audio |
Built-in microphone |
|
Connectivity |
Ethernet (RJ-45), supports PoE (802.3af) |
|
Durability |
IP67 weatherproof rating (metal and plastic casing), wide voltage tolerance |
|
Detection |
Human detection, motion detection, video tampering, audio detection, network disconnection |
|
Video Compression |
H.265, H.264, MJPEG (supports Smart H.265+ / H.264+ for efficiency) |
Key Features
- Smart Dual Light: The camera uses a smart algorithm to switch between invisible IR light and visible warm white light when a human is detected, capturing color video of the event for better identification while reducing light pollution otherwise.
- Human Detection: Intelligent algorithms focus specifically on human targets, filtering out alarms from non-human sources like pets or leaves to increase accuracy.
- Wide Dynamic Range (WDR): The 120 dB WDR technology ensures clear images in environments with strong contrast between bright and dark areas, such as in strong backlighting conditions.
- Audio and Abnormality Detection: A built-in microphone allows for audio capture and detection, while the system also alerts for other issues like network disconnection, IP conflicts, or illegal access.
- Efficient Storage: The use of Smart H.265+ and H.264+ codecs helps reduce storage and transmission costs without sacrificing video quality.
